900SX

The Sweeper With Drive

Start Sweeping

Control Panel

It’s easy to get started. Turn the key and switch on suction with the lever on the right. You can see your battery’s charge level too.

Handlebar Controls

Lower one or both front brooms using the handlebar controls. Then hold the front control lever for self-propelled walk-behind sweeping. Handlebar height can be adjusted for improved operator comfort.

Main Broom Pressure

Before starting, you may wish to adjust the ground pressure of the main broom. Simply open the hood and turn the knob at the front of the sweeper to raise or lower the cylindrical broom.

Collect and Empty Debris

Sweep it Up

Cutting a clean path through a floor of dust is as easy as walking forward and allowing the 900SX to sweep and suck up everything in its 44-inch path.

Shake the Filter

The onboard PTFE Filter collects even the finest particles while sweeping. After each use, gently pull the filter handle up and down (about an inch or two as pictured) to release dust and dirt into the hopper.

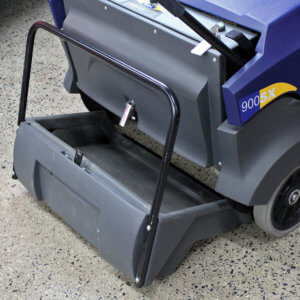

Remove Hopper

The debris hopper (waste box) can be easily removed by un-clipping the locking mechanism and sliding it out. Empty the collected dirt, slide it back in, and you’re ready for more sweeping.

Let’s Get Technical

Feature	900SX
Weight	232 lbs
Cleaning Path (in.)	44
Power Source	Battery
Hopper Capacity	13.2 Gallons
Batteries (V/A)	12/370 (1)
Theoretical Productivity (ft2/hr)	53,820
Sweeper Filter Material	PTFE Filter (<10μm)
Filtration of PM10 Particles	99%
